Advanced Artificial Athlete Tester (3A)

The Advanced Artificial Athlete or 3A is a development of the original Artificial Athlete which is a combination of the Berlin and Stuttgart Athlete. In addition to shock absorption and vertical deformation, the 3A also measures the energy restitution.

The 3A has a built-in accelerometer and uses only one 10kN spring. As a result, the 3A has become a much more practical device compared to the 2A. The sensor determines the shock absorption, vertical deformation and energy refund in one and the same fall. This was not possible before. The 3A records the acceleration as a time function during and after the fall.

The 3A Impact Tester comes with a practical wireless measurement application that is compatible with iOS. The application generates fast and precise results and can be stored in the application immediately after the measurement took place as well as read in the DAD (Data Acquisition Device) case. Everything works according to the applicable standards CEN16717 / F3189 and which are the basis of the 3A Impact Tester of Deltec Equipment.

The fall mechanism is user-friendly and easy to move. The device can also be used in the field and can operate without a permanent power supply through an internal NiMH 12V battery package in the DAD-Case. The DAD-Case can also be connected to other Proline equipment.

Impact Tester Deltec 3A

Your benefits:

  • A high degree of reproducibility
  • 3 results in 1 drop
  • Complies with 3A standards
  • Mobile and flexible in use
  • Measurements immediately in a digital measurement report
  • Real-time measurement results on DAD-Case display and mobile application
  • Via WI-FI Cloud data storage and export in PDF and Excel
  • Data Acquisition Device with an internal battery pack

Applications: Football, Hockey, Rugby

Standards: CEN / TS 16717, FIFA 04a, FIFA 05a, FIFA 13, ASTM F3189

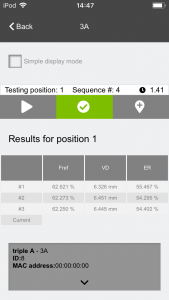

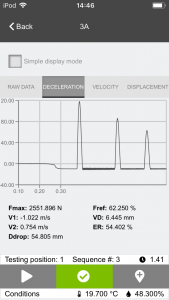

Deltec iOS App 3A
Deltec iOS App 3A
Deltec iOS App 3A

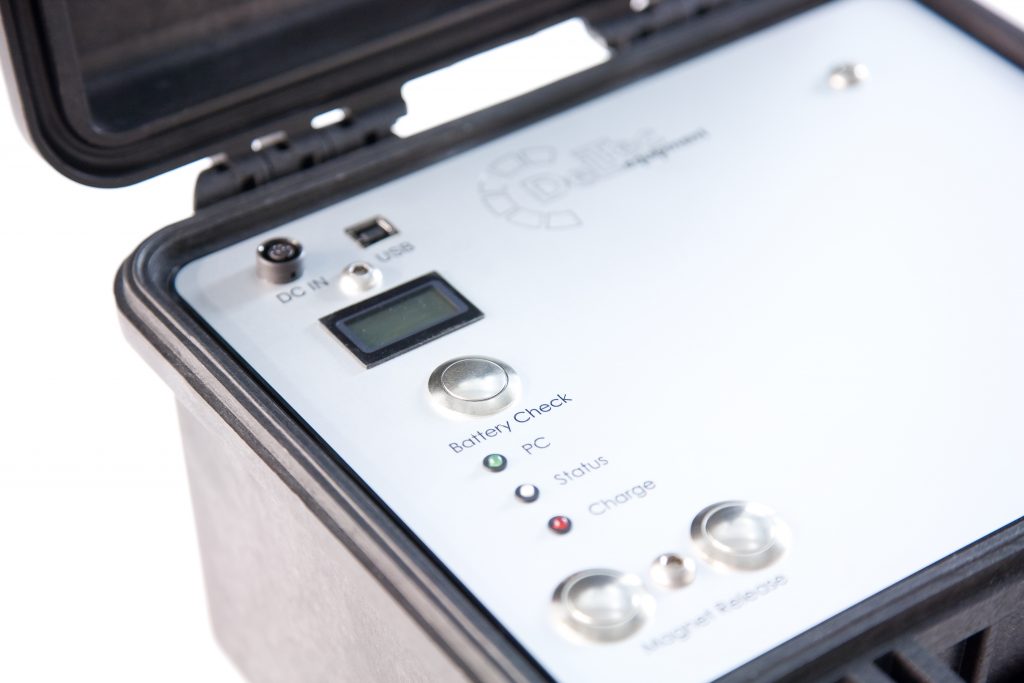

Deltec Equipment 3A DAD-Case
Deltec Equipment 3A DAD-Case

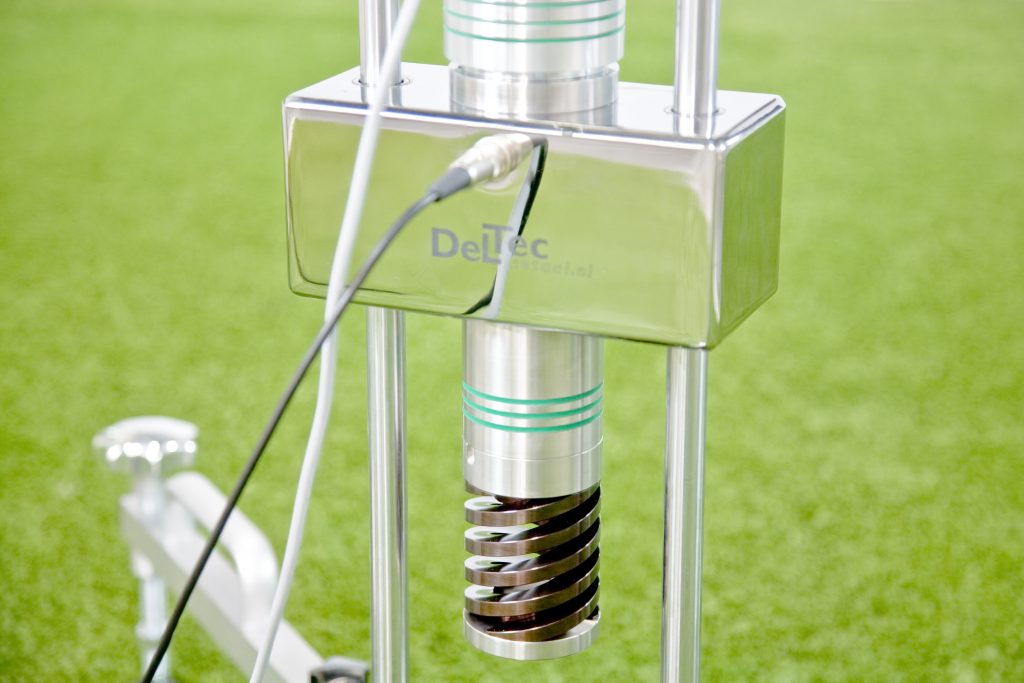

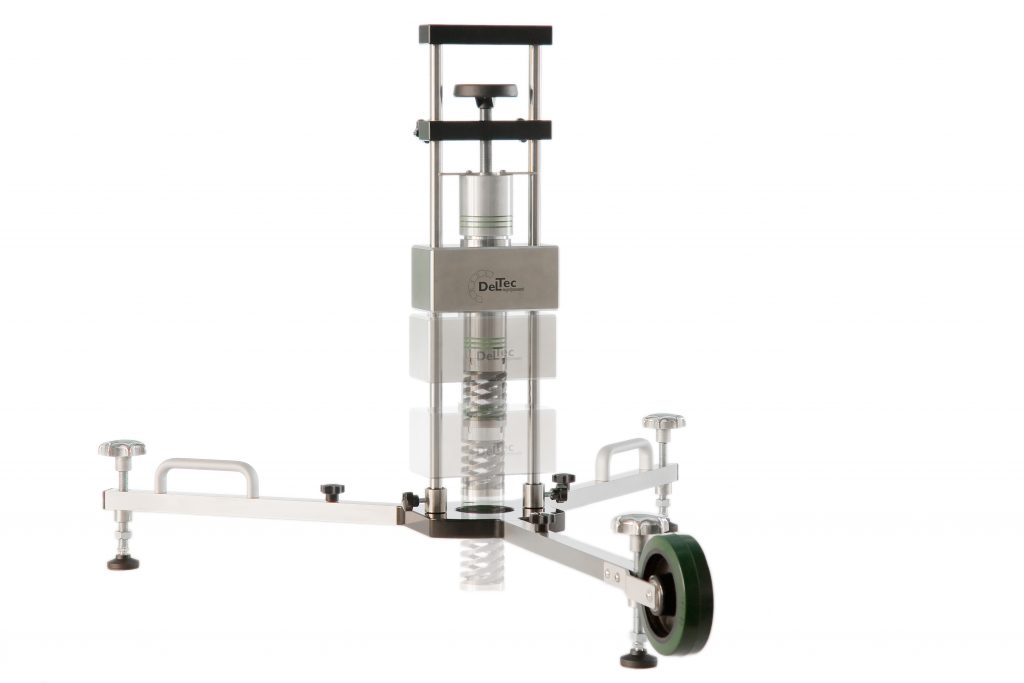

Deltec Equipment 3A Impact Tester
Deltec Equipment 3A Impact Tester
