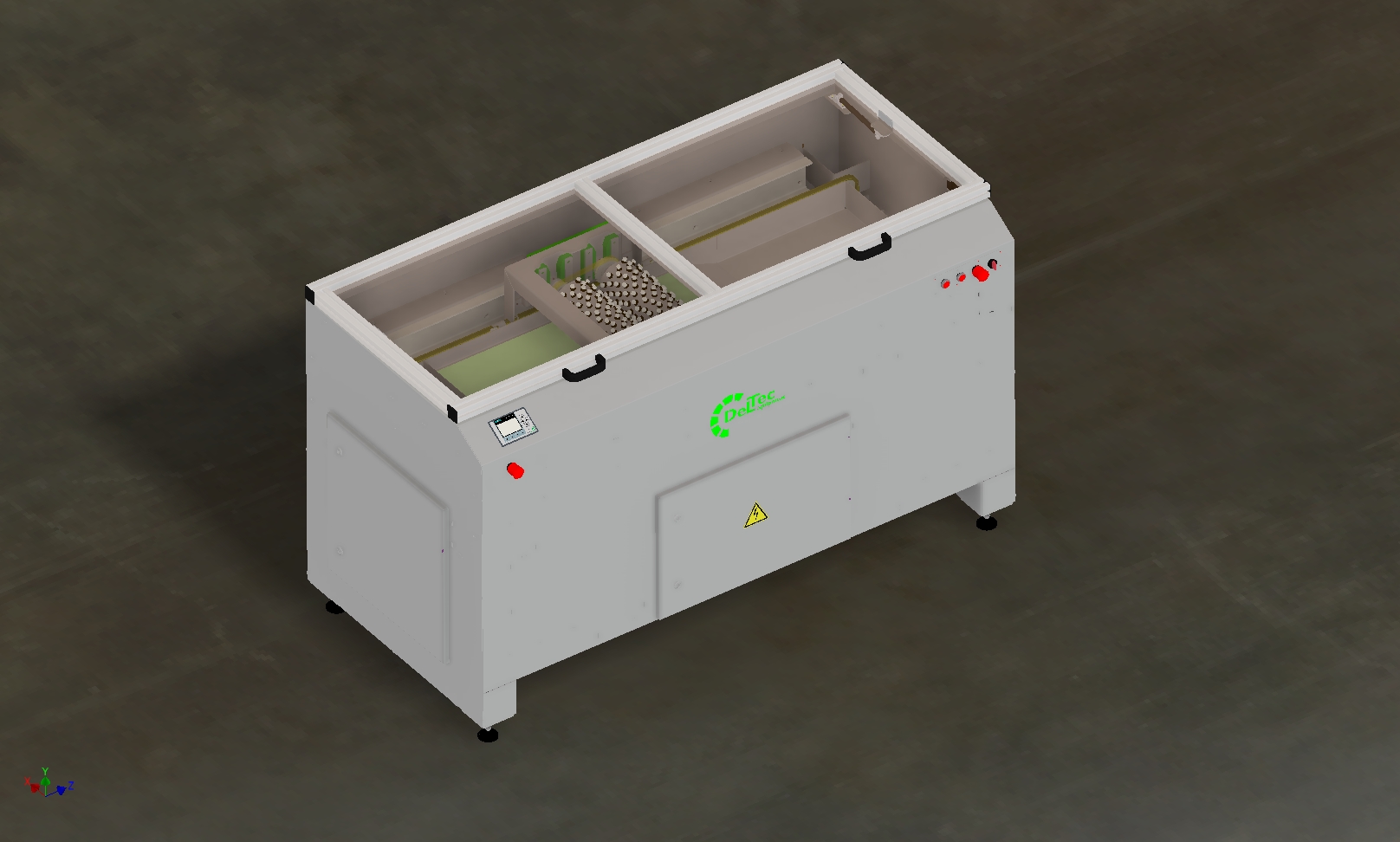

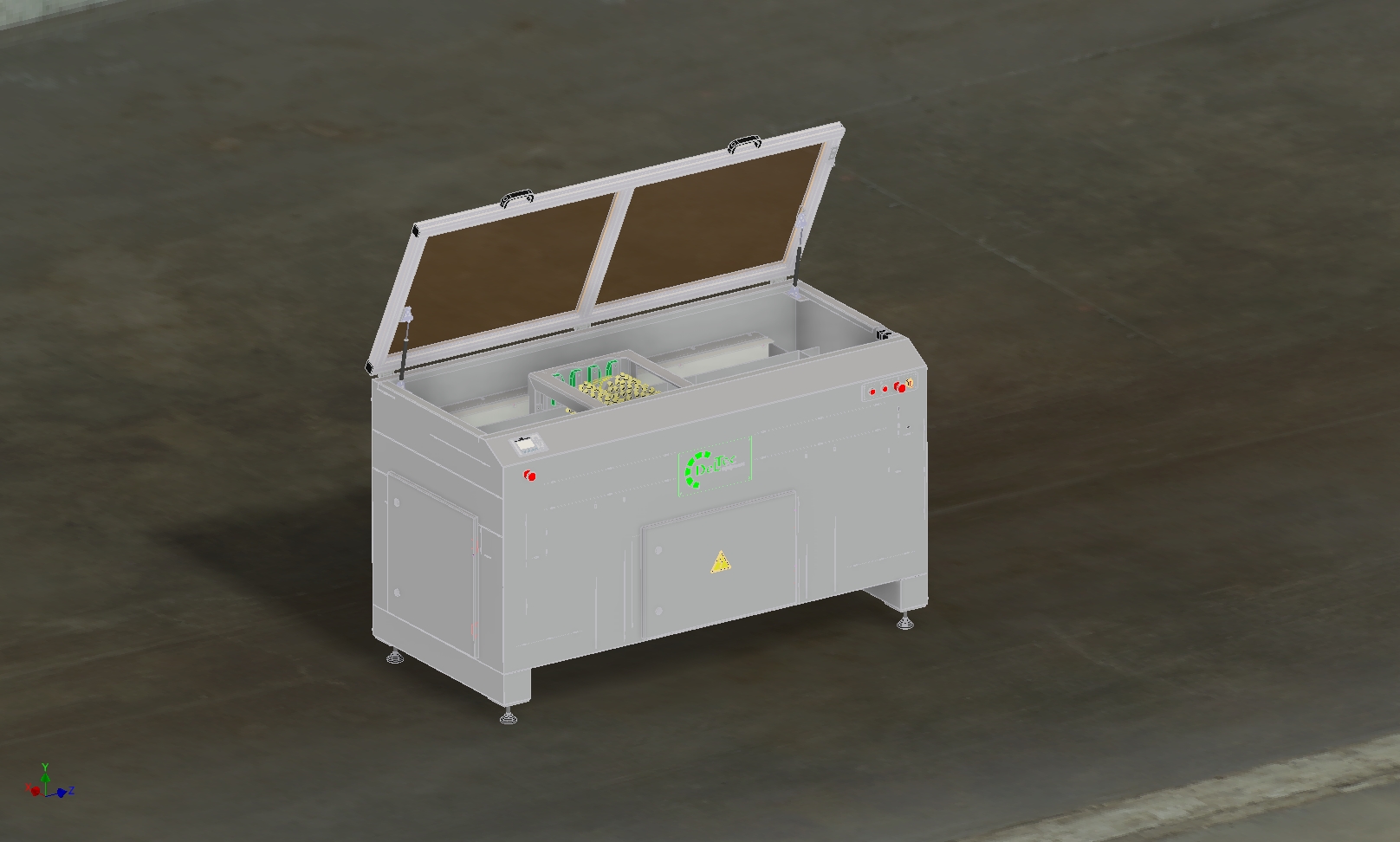

Lisport Wear Tester



Deltec Equipment developed the Lisport Wear Tester in order to test the Simulated Mechanical Abrasion as described by the CEN standards. The Lisport simulates the interaction between a sports shoe and a sports surface. This device is a durability test for artificial turf of Football and Hockey fields.

The Lisport Wear Tester is able to perform two wear simulations: the Random Forced Slip and the Transverse Movement, and measures the simulated mechanical abrasion. These tests are prescribed for wearing surfaces to prevent the formation of patterns in accordance with the CEN guidelines. This makes it possible to compare different wear simulations from your own and other laboratories with just one machine.

Optional are the rollers with a profiled rubber pattern on them instead of the Soccer studs. The rubber sole is necessary to test Multi-Sport hockey turf categories MS1 and MS2. Multi-Sport category MS3 is tested using the studded rollers.

The Lisport is available in two sizes. Both sizes are according to NEN 15306:2014.

Model M:

Machine dimensions: 262 x 94 x 112 cm

Sample dimensions: 120 x 30 cm

Power: 230V / 50Hz / 1kW

Model L:

Machine dimensions: 312 x 114 x 112 cm

Sample dimensions: 180 x 50 cm

Power: 230V / 50Hz / 1kW

Your benefits:

  • Easy installation
  • Two known tests in one machine (Transverse Movement standard, Random Forced Slip)
  • Sample spanner system for easy fixing
  • Touchscreen with an easy-to-use interface
  • Well-known brands of electronic components
  • Almost maintenance free
  • Sidewall extension parts for thicker artificial turf samples
  • The accessible area of the sample is flexible
  • Easy access for cleaning the inside of the machine
  • Fast change between studded and rubber pattern rollers (Optional)

Applications: Football (Soccer) and Hockey (FiH)

Standards: NEN 15306:2014
